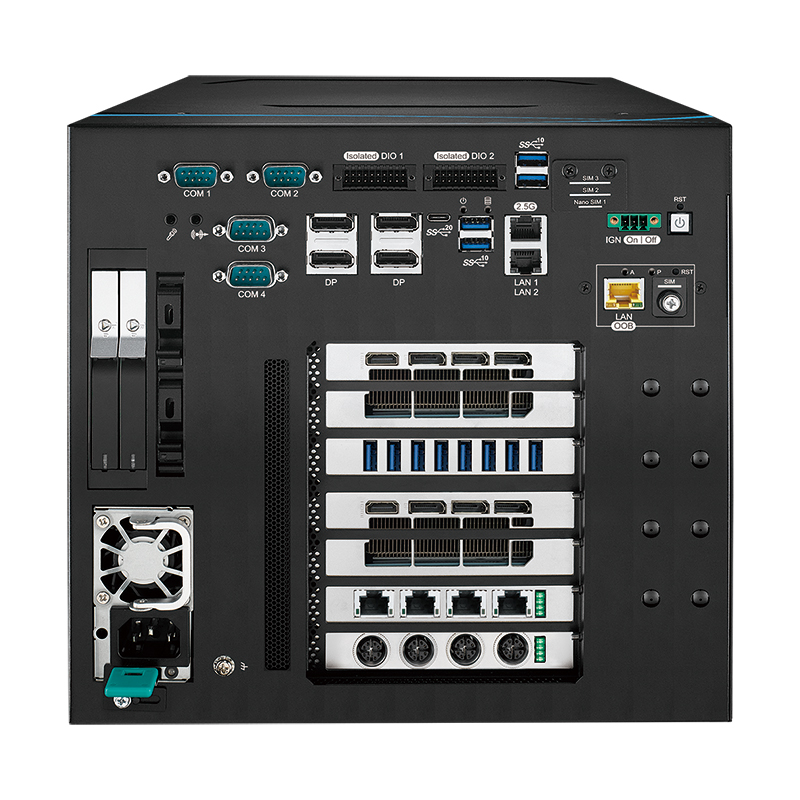

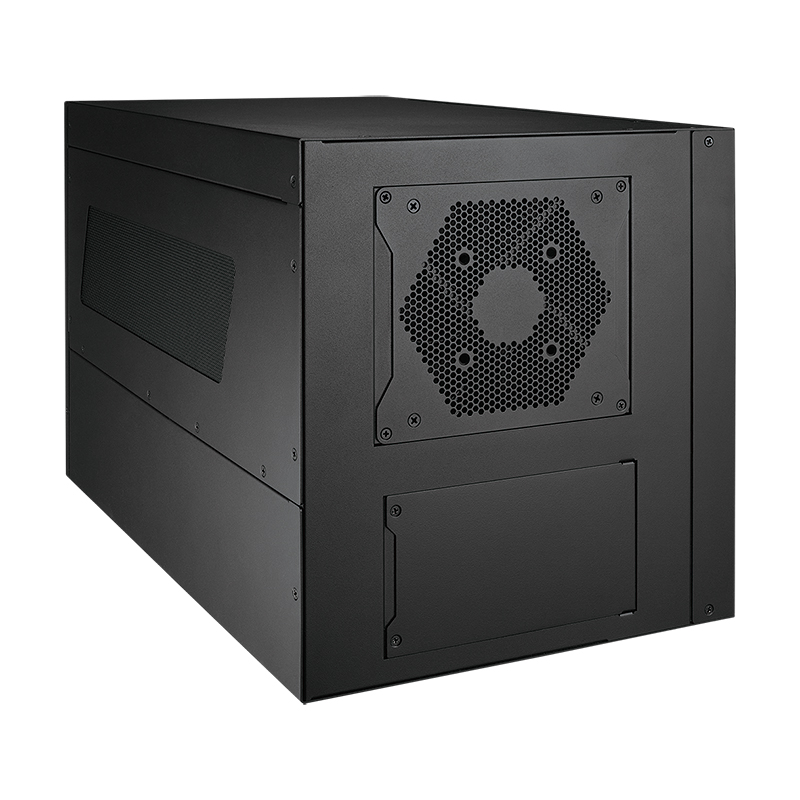

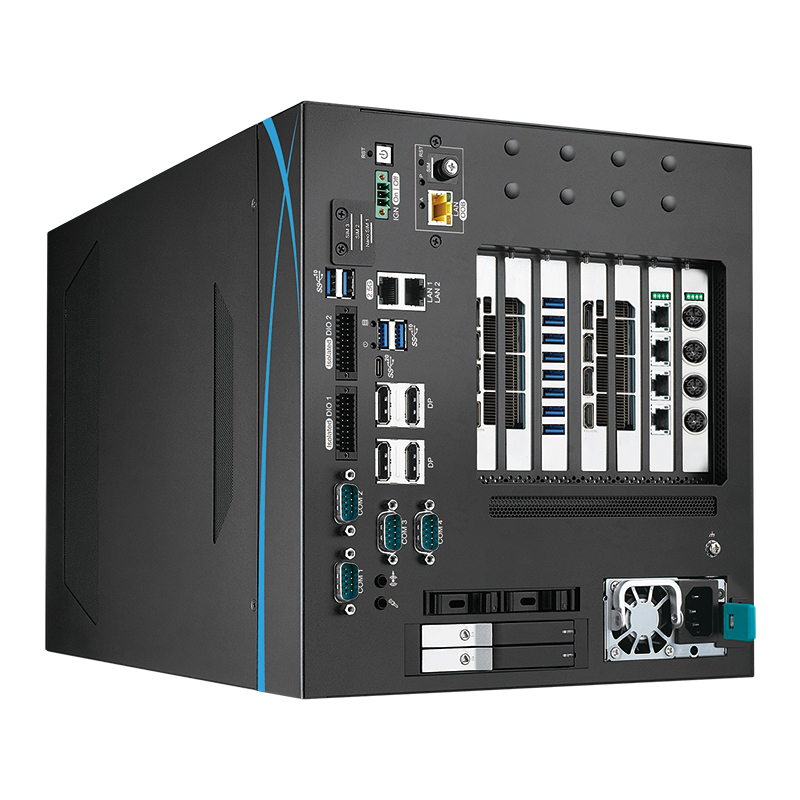

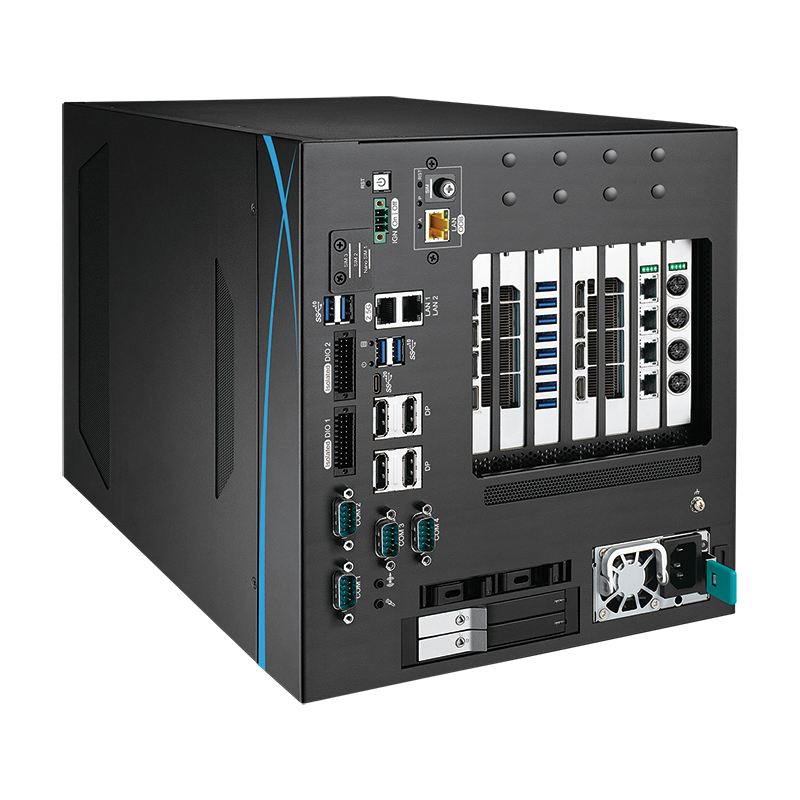

RCX-3750 APEG

Intel® Core™ i9/i7/i5/i3 Processor (14th gen, RPL-S Refresh/RPL-S/ADL-S), Expandable GPU-accelerated System with Discrete Graphics, 2 2.5GigE LAN, 4 USB 3.2 Gen 2, 1 USB 3.2 Gen 2×2 Type-C, 4 COM RS-232/422/485, 3 SIM, 2 Front-access 2.5″ SSD/HDD Tray, 2 Front-access M.2 SSD Tray, 5 PCIe Slot, 3 M.2, 32 Isolated DIO, AC Power Input, High Performance, Flexible, Expandable

Datasheet

Category: Brand:

Description

      • Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
      • Max 1800W power budget supports dual 900W NVIDIA® or AMD 2-slot full-length graphics card
      • Flexible Power Input Design with Software Ignition Control : AC 220V
      • Up to 7 Slot PCIe expansions with PCIe 4.0 x8  and PCIe x4 signals
      • 2 Front-access M.2 and 2 2.5″ SSD Tray, multiple 5G/WiFi/4G/LTE/GPRS/UMTS
      • 4 DisplayPort up to 4K resolution, USB 3.2 Gen 2×2 Type C with a max speed of 20Gbps data transfer supported, 2 Independent 2.5G LAN with Intel® TSN
      • Support remote devices Out-Of-Band management functions powered by Allxon

High-performance AI Inference Platform

  • 13th/12th Gen Intel Core i9/i7/i5/i3 processor (codename Raptor Lake-S/Alder Lake-S) running with Intel R680E PCH, max 24-core 65W TDP 5.2GHz CPU supported
  • 4 DDR5 Memory, up to 128GB, optional supports ECC
  • Supports performance hybrid architecture and advanced AI capabilities for smarter and faster applications
  • Intel UHD Graphics 770 supports DirectX 12, OpenGL 4.5, OpenCL 3.0
  • Optional delivers outstanding AI computing productivity supporting max 10752 CUDA Cores, 84 RT Cores, and 336 Tensor Cores, delivers 75.6 TFLOPS RT Core performance, and 309.7 TFLOPS Tensor performance
  • High-speed data transfer : PCIe 4.0 (16GT/s), USB 3.2 Gen 2×2 Type-C (20G), USB 3.2 Gen 2 (10G), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)



Advanced Integration

      • Fully supports 3-slot, 2-slot, single-slot & full-length discrete graphics card
      • Intel Deep Learning Boost for accelerated AI performance
      • Intel Turbo Boost Technology 2.0 accelerates processor performance on peak loads
      • Supports Intel vPro, TPM 2.0, PXE, Wake on LAN for remote control
      • Supports TSN and Intel TCC for real-time control
      • Fully supports Intel OpenVINO toolkit for AI Computing
      • Optional supports remote device Out-Of-Band management functions powered by Allxon



Flexible Configuration

      • Flexible product configuration for project requirements
      • Max 7 PCIe expansions : PCIe 4.0 x16, PCIe x8, PCIe x4
      • PCIe expansions for multiple 10GigE M12 PoE+ LAN, 10GigE PoE+ LAN, 10GigE LAN, 10G SFP+, 2.5GigE PoE+ LAN, 2.5GigE LAN, 100W PoE++, M12 PoE+ LAN, PoE+ LAN, GigE LAN, LAN Switch, USB, or Discrete Graphics
      • Max 1800W power budget optional supports levels of full-length discrete graphics, max 10752 CUDA Core Computing
      • Multiple compact M.2 Key B, M.2 Key E, M.2 Key M connections for Storage and Expansion
      • Flexible Wide Range Power options : DC 16V to 50 Power Input or AC 90V to 240V Power Input



Industrial Optimization

      • EN50155 & EN50121-3-2 compliant
      • ICE 61373 : Anti-shock, Anti-vibration
      • Dual high-reliable Intel 2.5GigE LAN support TSN
      • Trusted longevity supports
      • Wide range power input facilitates indoor, outdoor, and even in-vehicle operating environments
      • 16-mode SW Ignition Power Control benefits for in-vehicle operation
      • 32 Isolated DIO, 4 COM RS-232/422/485
      • 3 External SIM sockets supports always-on 5G/WiFi/BT/4G/LTE/GPRS/UMTS Wireless Communication
      • Remote Power Switch

Additional information

CPU

12th Gen, 13th Gen, 14th Gen

Slot
